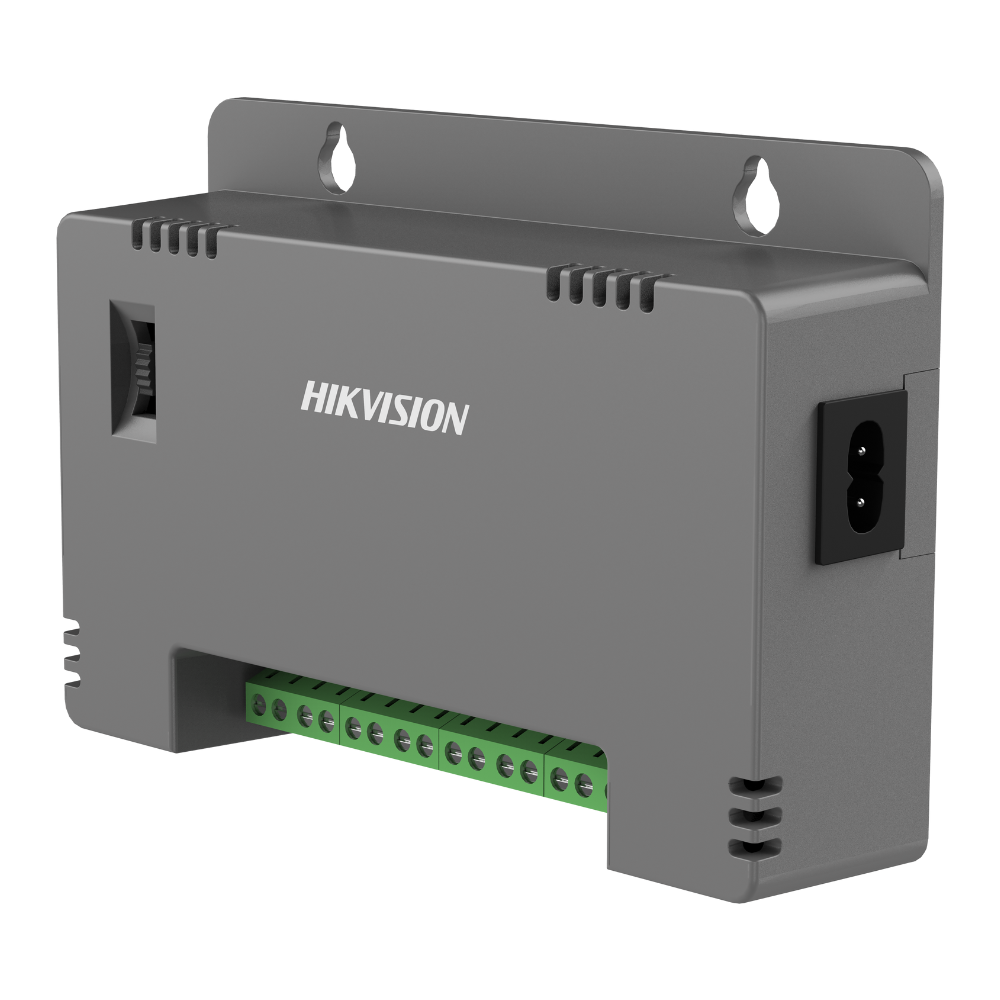

Multi-Channel CCTV SMPS – 12V DC / 1A Per Channel | Short Circuit, Overload & Overvoltage Protected
-
Multi-channel regulated 12V DC power supply (1A per channel)
-
Built-in protection: over-current, short-circuit, and over-voltage
-
High-quality EMC performance; compliant with IT product safety standards
-
Compact & durable design suitable for CCTV cameras and security systems
-
Adjustable cable length compensation for long power runs
-
Stable power output with low ripple (150 mVp-p)
-
LED indicator for easy power status monitoring
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
This Multi-Channel 12V DC SMPS is designed for professional CCTV installations, offering stable and protected power to multiple cameras simultaneously. Each channel delivers 1A regulated output, making it suitable for DVR/NVR setups, IP cameras (with 12V input), and analog surveillance systems.
Its robust design includes short-circuit, over-current, and over-voltage protection, ensuring the safety of connected devices. With excellent EMC performance and compliance with IT product standards, this SMPS provides reliable long-term operation.
The unit also supports cable length compensation—Normal (12V), Long (13.5V), and Extra-Long (15V)—to offset voltage drop in extended wiring, ensuring stable camera performance even in large installations.
Technical Specifications:
| Category | Specification |
|---|---|
| Appearance | Gray |
| Dimensions | 130 × 94 × 34 mm (5.11″ × 3.70″ × 1.34″) |
| LED Indicator | Green |
| Input Voltage | 185–240 VAC, 50–60 Hz |
| Output | 12 VDC / 1 A per channel |
| Protection | Over-current, Short-circuit, Over-voltage |
| Ripple & Noise | 150 mVp-p (0.15 Vp-p) |
| AC Input Connector | C8 |
| DC Output Connector | DC Plug / Grid Terminal |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% – 95% (Non-condensing) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Humidity | 5% – 95% (Non-condensing) |
| Cable Length Compensation | Normal: 12V / Long: 13.5V / Extra-Long: 15V |
| Application | CCTV Cameras, Security Systems, 12V Devices |
| ram | 16GB, 8GB |
|---|---|
| internal-storage | 256GB, 512GB |
