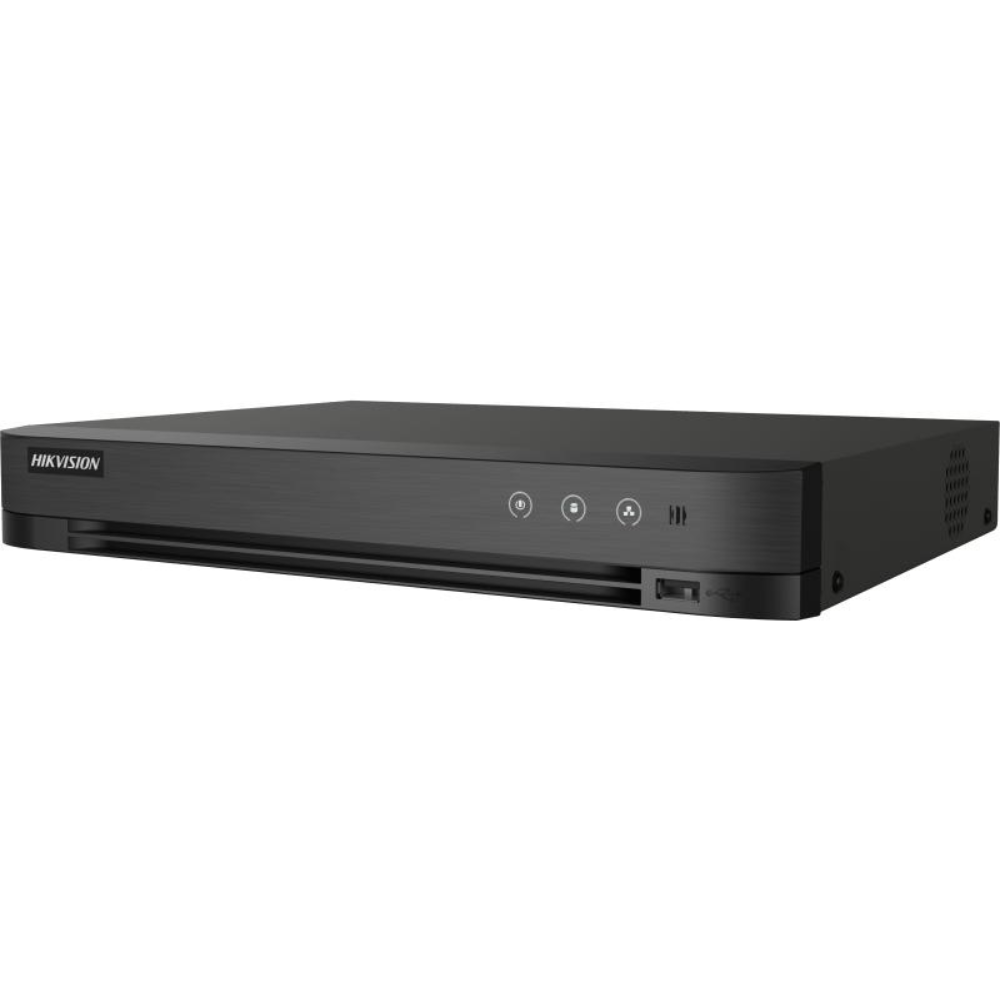

Hikvision 4-Channel 5 MP 1U H.265 AcuSense DVR

Name: Hikvision 4-Channel 5 MP 1U H.265 AcuSense DVR
Brand: HIKVISION
SKU: iDS-7204HUHI-M1/X
Price: 5980.00 INR
Availability: InStock

₹5,980

19 products sold in last 8 hours

Selling fast! Over 8 people have in their cart

4-channel DVR with H.265 Pro+ compression for efficient storage and smooth performance
Supports Facial Recognition and Perimeter Protection powered by Deep Learning
Up to 4K/8 MP recording at 8 fps and 5 MP at 12 fps for superior image clarity
Compatible with HDTVI, AHD, CVI, CVBS, and IP video inputs
Up to 8 IP camera channels, each supporting up to 8 MP resolution
Intelligent motion detection with human and vehicle classification
Dual HDMI/VGA outputs with up to 2K resolution
Supports up to 16 face libraries and 2-channel face comparison alarms
Reliable 12 VDC power supply with low power consumption (≤ 10 W)
Supports 1 HDD (up to 12 TB) for extended video storage capacity

2655 in stock

21 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

About this item

The Hikvision 4-Channel 5 MP 1U H.265 AcuSense DVR (iDS-7204HUHI-M1/X) is an advanced surveillance recorder designed for professional-grade security setups. Featuring deep learning-based Facial Recognition and Perimeter Protection, it efficiently classifies humans and vehicles, minimizing false alarms. The DVR supports encoding up to 8 MP (4K) @ 8 fps and integrates AcuSearch technology for quick retrieval of events. With support for up to 8 IP channels and multi-format compatibility (HDTVI, AHD, CVI, CVBS, and IP), it ensures flexible system integration.

Equipped with H.265 Pro+ compression, it maximizes video storage efficiency without compromising quality. The device also includes dual HDMI and VGA outputs, offering crisp display up to 2K resolution. Supporting up to 16 facial libraries and 2-channel face comparison alarms, it brings intelligent security capabilities within reach of small and medium installations. With its robust build, efficient power usage, and high-capacity storage (up to 12 TB HDD), this DVR delivers reliable 24/7 performance for both home and commercial surveillance needs.

Category	Details
Model number	iDS-7204HUHI-M1/X
Model	4-ch 5 MP 1U H.265 AcuSense DVR
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 Ω), supports coaxitron
Supported Signals	HDTVI / AHD / CVI / CVBS / IP
IP Video Input	2-ch (up to 6-ch), enhanced mode up to 8-ch (8 MP max)
Encoding Resolution	8 MP@8 fps, 3K/5 MP@12 fps, 4 MP@15 fps
Sub-Stream	WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Audio Input / Output	4-ch input (RCA, 2.0 Vp-p), 1-ch output (RCA, Linear, 1 KΩ)
Two-Way Audio	1-ch RCA (using first audio input)
Facial Recognition	Up to 2 channels with face comparison and search
Perimeter Protection	Up to 4 channels, human/vehicle classification
AcuSearch Technology	Supported (4 channels)
Face Picture Libraries	Up to 16 libraries
HDMI Output	1-ch, up to 2K (2560 × 1440) @ 60 Hz
VGA Output	1-ch, up to 1080p @ 60 Hz
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback	4-ch
Video Bitrate	32 Kbps – 10 Mbps
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Network Interface	1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DDNS, NTP, HTTPS, ONVIF, ISUP
Remote Connections	Up to 32
Total Bandwidth	96 Mbps
SATA Interface	1 SATA port (up to 12 TB HDD capacity)
USB Ports	Front: 1 × USB 2.0; Rear: 1 × USB 3.0
RS-485 Interface	Supported (half-duplex)
Alarm In/Out	Optional (4/1)
Power Supply	12 VDC, 1.5 A
Power Consumption	≤ 10 W (without HDD)
Operating Temperature	-10°C to 55°C
Operating Humidity	10% to 90%
Dimensions (W × D × H)	319 × 236 × 48 mm
Weight	≤ 1.16 kg
Key Features	Deep learning-based human/vehicle detection, facial recognition, motion detection on all channels
Video Outputs	HDMI, VGA, CVBS simultaneous output
