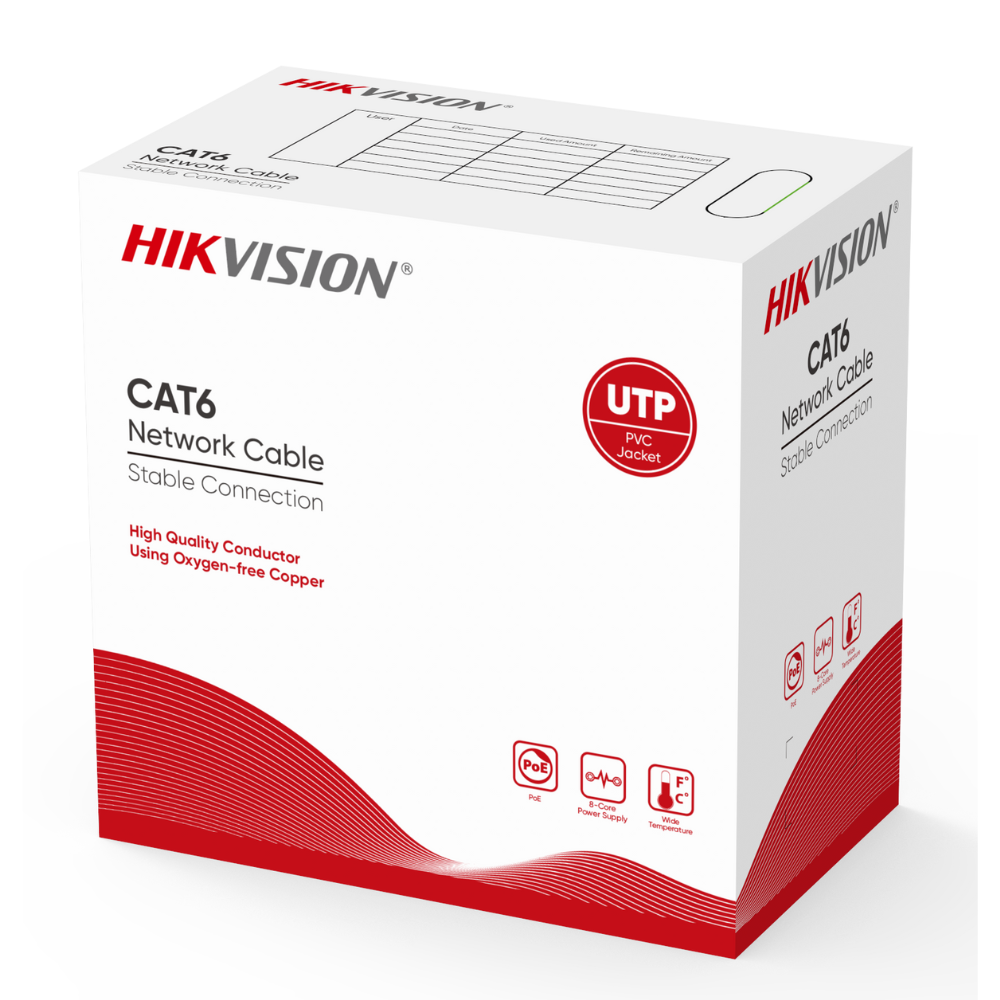

Hikvision 305m CAT6 UTP Network Cable – Solid Copper 0.55 mm, Gray (Fluke Tested, PVC Jacket)

Name: Hikvision 305m CAT6 UTP Network Cable – Solid Copper 0.55 mm, Gray (Fluke Tested, PVC Jacket)
Brand: HIKVISION
SKU: DS-1LN6U-G
Price: 8870.00 INR
Availability: InStock

₹8,870

14 products sold in last 16 hours

Selling fast! Over 12 people have in their cart

305-meter full-length CAT6 U/UTP solid copper network cable
0.55 mm (23 AWG) solid bare copper conductor for superior signal quality
Fluke-tested for verified performance and reliability
Supports high-speed data, long-distance PoE transmission, and stable connectivity
Strong PVC flame-resistant jacket for durability and safety
Includes separator & rip-cord for easy installation
Compliant with ISO/IEC11801, ANSI/TIA-568-C.2, and RoHS 2.0 standards
Ideal for CCTV, routers, NVRs, switches, server rooms & enterprise networks

10 in stock

29 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

About this item

The Hikvision 305m CAT6 UTP Network Cable is engineered for high-performance networking, surveillance, and long-distance PoE applications. Built with 0.55 mm solid bare copper (23 AWG) conductors, it ensures exceptional conductivity, stable data transfer, and minimal signal loss across the full 305-meter length.

Each cable undergoes Fluke certification, guaranteeing superior transmission quality and compliance with international standards. The durable PVC gray outer jacket provides excellent flame resistance and long-term protection, making it suitable for professional installations in homes, offices, data centers, and CCTV environments.

Designed with a separator and rip-cord, the cable offers easier stripping and improved signal isolation, delivering enhanced reliability for high-speed networks.

Technical Specifications:

Feature	Specification
Model / Category	CAT6 U/UTP Network Cable
Length	305 ± 1.5 meters
Conductor Material	99.95% Solid Bare Copper
Conductor Diameter	0.55 ± 0.005 mm (23 AWG)
Insulation Material	HDPE
Insulation Diameter	0.98 ± 0.05 mm
Cable Structure	4 Pair U/UTP with Separator
Sheath Material	PVC
Sheath Thickness	0.5 ± 0.10 mm
Sheath Color	Gray
Overall Diameter	6.00 ± 0.30 mm
Fire Resistance	No
Standards Compliance	ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
Stealth Printing	HIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED
Fluke Tested	Yes
Impedance (1–250 MHz)	100 ± 15Ω (≤100 MHz), 100 ± 25Ω (100–250 MHz)
Delay Skew	≤ 45 ns/100 m
DC Resistance	≤ 9.38 Ω/100 m
Resistance Unbalance	≤ 5%
Cold Bend Test	-20 ± 2°C × 4h (No cracks)
Aging Test	100°C × 24h × 10d
Package Dimensions	400 × 400 × 240 mm
Weight	12.3 ± 0.5 kg
Operating Voltage	60V
Ambient Temperature	-20°C to 75°C
