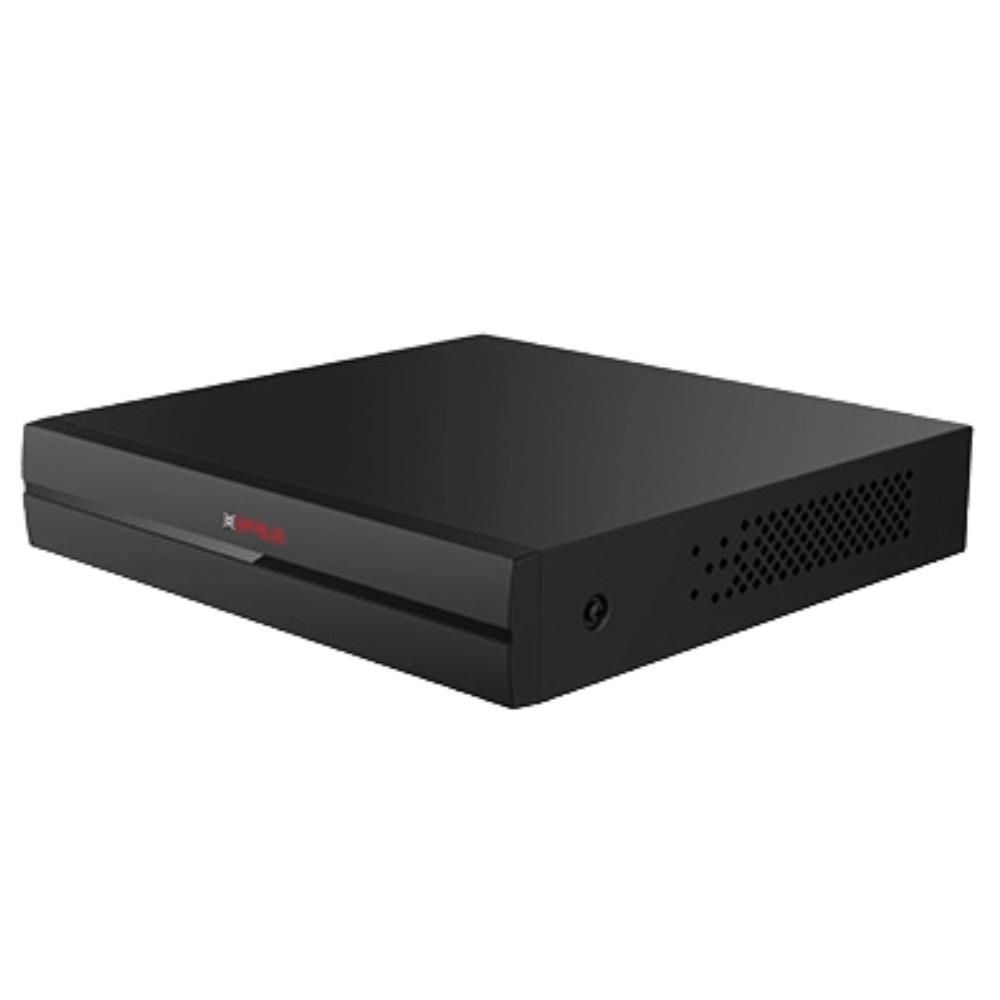

CP PLUS 4-Channel 1080N Digital Video Recorder with AI Instastream, H.265 & Mobile Viewing
-
4-Channel 1080N Digital Video Recorder
-
Supports HDCVI / AHD / TVI / CVBS / IP cameras
-
Up to 5 IP camera inputs (each up to 2MP)
-
AI Instastream & H.265 dual-stream compression
-
SMD Plus for human & vehicle detection (4 channels)
-
1 SATA HDD support up to 6TB
-
HDMI & VGA simultaneous video output
-
Mobile viewing via iCMOB & gCMOB apps
-
CMS software support: KVMS Pro Lite
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
The CP PLUS CP-UVR-0401E1-IC2 4-Channel Digital Video Recorder is a powerful and compact surveillance solution designed for homes, offices, and small commercial installations. Supporting multiple camera technologies including HDCVI, AHD, TVI, CVBS, and IP, this DVR ensures seamless compatibility with existing CCTV setups while allowing future upgrades.
Equipped with AI Instastream technology, the recorder significantly reduces bandwidth and storage usage without compromising video quality. The built-in SMD Plus feature enables intelligent motion detection with accurate human and vehicle classification, reducing false alerts. With HDMI and VGA simultaneous output, mobile monitoring through iCMOB/gCMOB, and support for up to 6TB SATA storage, this DVR delivers reliable, efficient, and intelligent video recording for modern security needs.
| Category | Details |
|---|---|
| Brand | CP PLUS |
| Model Number | CP-UVR-0401E1-IC2 |
| Recorder Type | 4-Channel Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Inputs | 4-Ch BNC (HDCVI/AHD/TVI/CVBS) |
| IP Camera Input | 4 + 1 IP channels (Up to 2MP each) |
| Incoming Bandwidth | Max 20 Mbps |
| AI Technology | AI Instastream |
| SMD Plus | 4 Channels |
| AI Search | Human & Vehicle Classification |
| Video Compression | AI Instastream / Instastream / H.265 / H.264+ / H.264 |
| Recording Resolution | 1080N / 720P / 960H / D1 / CIF |
| Recording Frame Rate | 1–25/30 fps (Main Stream) |
| Sub-Stream | CIF (1–15 fps) |
| Video Output | 1 × HDMI, 1 × VGA (Simultaneous) |
| Display Split | 1 / 4 |
| Bit Rate | 32 kbps – 4096 kbps per channel |
| Audio Input | 1-Ch RCA |
| Audio Output | 1-Ch RCA |
| Two-Way Talk | Supported (RCA) |
| Audio Compression | G.711A / G.711U / PCM |
| Motion Detection | Supported |
| Smart Phone Support | iPhone, iPad, Android |
| Hard Disk Support | 1 SATA Port, Up to 6TB |
| USB Ports | 2 × USB 2.0 |
| Playback Channels | 1 / 4 |
| Backup Mode | USB Device / Network |
| Max User Access | 128 Users |
| Ethernet Interface | 1 × RJ-45 (100 Mbps) |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, FTP, SMTP, DDNS, ONVIF |
| Mobile App | iCMOB, gCMOB |
| CMS Software | KVMS Pro Lite |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | < 7W (without HDD) |
| Operating Temperature | -10°C to +45°C |
| Humidity | 0% – 90% RH |
| Dimensions (W × D × H) | 198 × 203 × 41.5 mm |
| Weight | 0.57 kg (Without HDD) |
| Application | Home, Retail, Office, Small Business Surveillance |
| Weight | 0.100 kg |
|---|---|
| color | Blue, Golden, Red |
| internal-storage | 16GB, 32GB |
