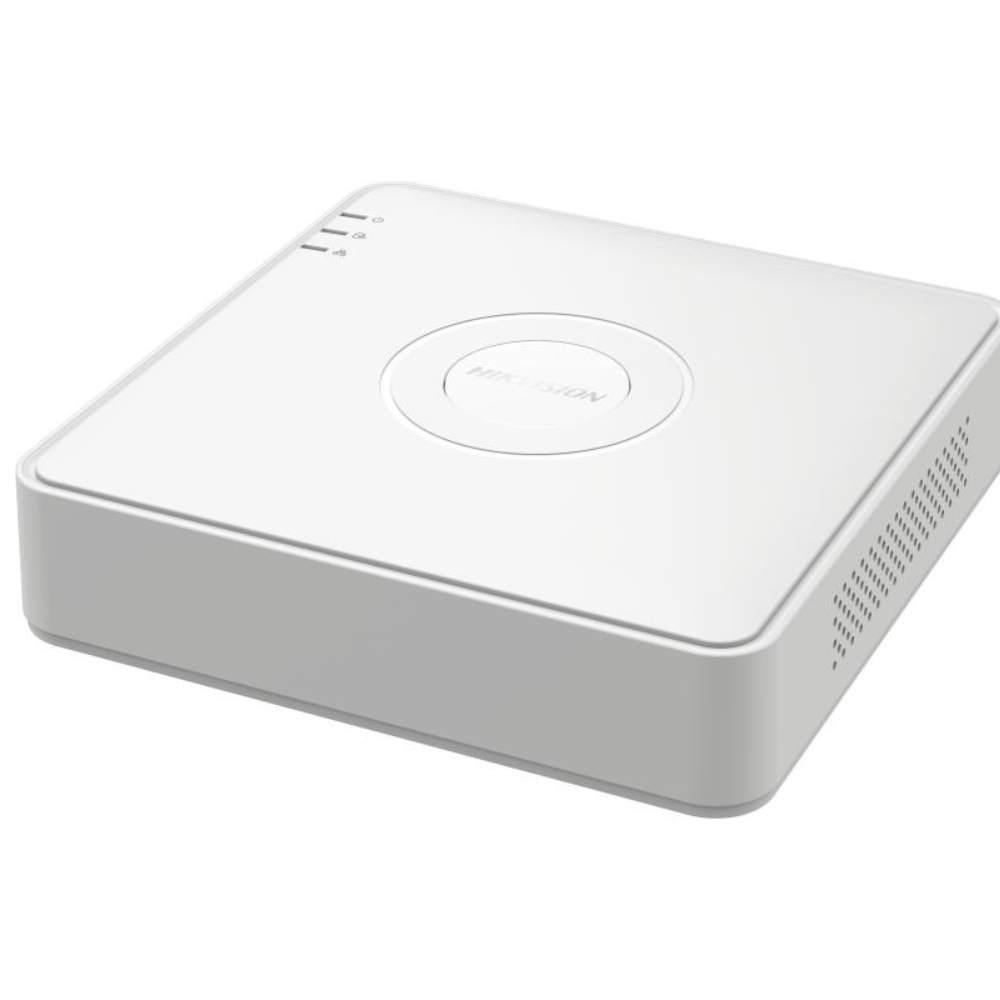

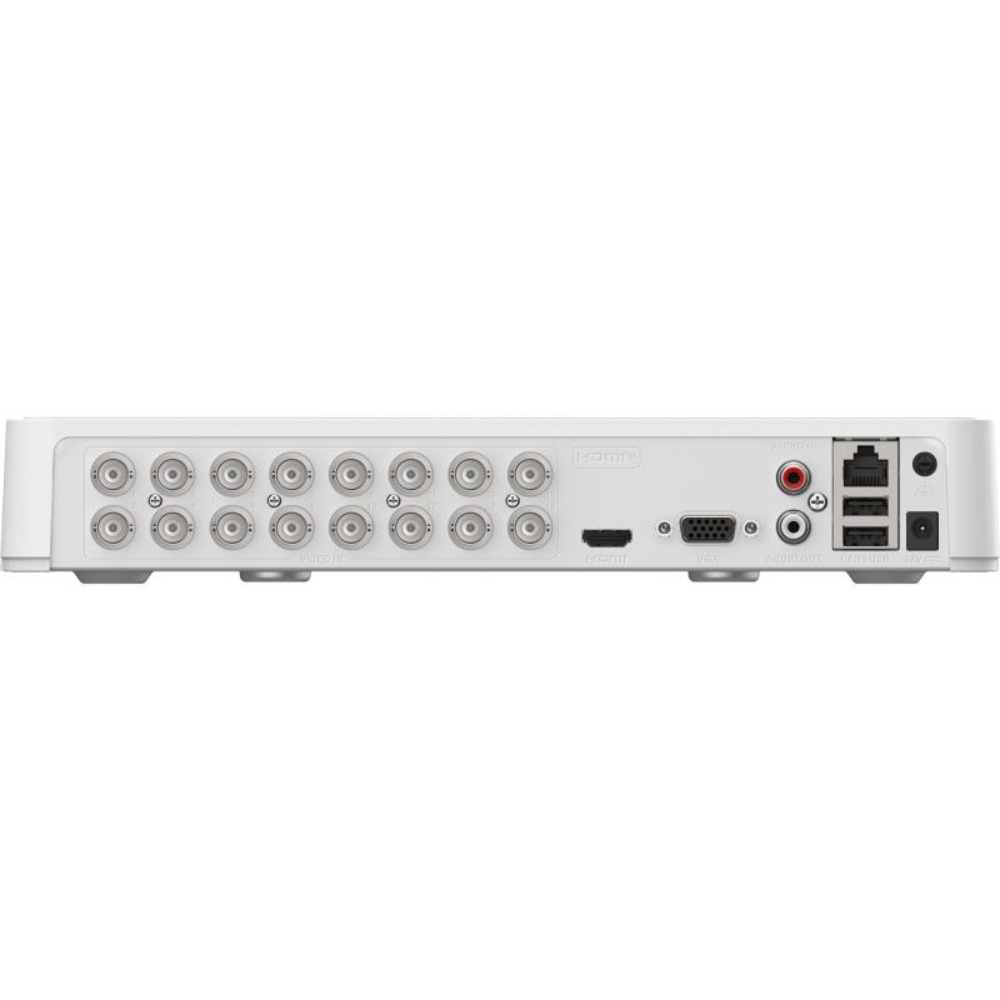

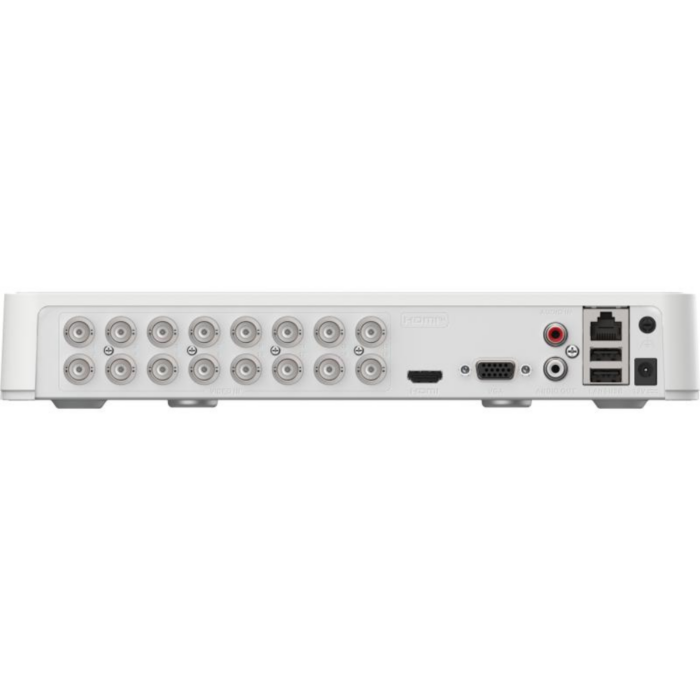

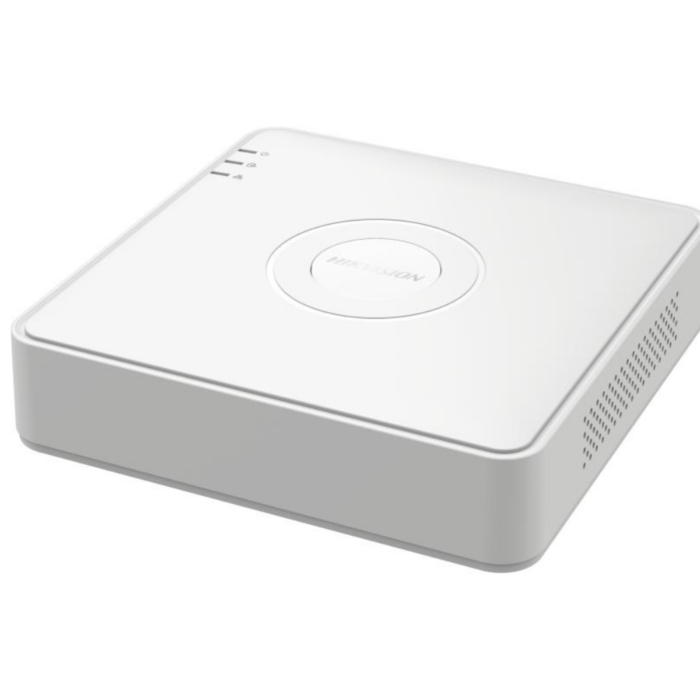

16CH 1080p Lite Mini 1U H.265 DVR | AI Motion Detection 2.0 | H.265 Pro+/Pro Compression | Supports HDTVI/AHD/CVI/CVBS/IP Cameras | Up to 6TB Storage
-
16-channel 1080p Lite DVR supporting HDTVI, AHD, CVI, CVBS, and IP video inputs
-
Deep Learning-based Motion Detection 2.0 for accurate human and vehicle classification
-
H.265 Pro+/H.265 Pro/H.265 compression for high-quality video and efficient storage
-
Up to 18 IP camera inputs with a maximum 5MP resolution
-
Supports Audio via Coaxial Cable and two-way audio communication
-
Simultaneous HDMI/VGA output with 1080p Full HD resolution
-
1 SATA interface supporting up to 6TB HDD capacity
-
Compact Mini 1U design with low power consumption (≤7W)
-
Ideal for residential, commercial, and small-scale surveillance systems
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
The 16CH 1080p Lite Mini 1U H.265 DVR (DS-7116HGHI-M1/T) offers a reliable, high-efficiency solution for advanced security monitoring. Designed with deep learning-based Motion Detection 2.0, it can intelligently classify humans and vehicles, drastically reducing false alarms triggered by movement such as leaves, lights, or shadows. This DVR supports multiple video formats including HDTVI, AHD, CVI, CVBS, and IP, ensuring broad compatibility with a variety of surveillance cameras.
With H.265 Pro+/H.265 Pro compression, it delivers crystal-clear video while minimizing storage and bandwidth usage, making it both powerful and economical. Supporting up to 18 IP channels (up to 5MP) and two-way audio communication, this DVR provides flexibility and real-time interaction across surveillance points.
Its Mini 1U design ensures a compact and sleek fit for any setup, while HDMI and VGA outputs offer Full HD display clarity. Featuring 1 SATA interface supporting up to 6TB storage capacity, robust networking protocols, and low power consumption, this DVR is an excellent choice for both home and commercial surveillance solutions requiring efficiency, scalability, and intelligent security monitoring.
| Specification | Details |
|---|---|
| Model number | DS-7116HGHI-M1/T |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog Video Input | 16-ch BNC (1.0 Vp-p, 75 Ω), Coaxitron Supported |
| Supported Video Formats | HDTVI / AHD / CVI / CVBS / IP |
| IP Video Input | 2-ch (up to 18-ch total), up to 5MP resolution |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) + 16-ch via coaxial |
| Audio Output | 1-ch RCA (Linear, 1 KΩ) |
| Two-Way Audio | Supported (reuse first audio input) |
| HDMI Output | 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output | 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Simultaneous Output | HDMI/VGA simultaneous output |
| Synchronous Playback | 16-ch |
| Frame Rate | 1080p Lite/720p Lite@15fps; WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) |
| Motion Detection 2.0 | AI-powered human/vehicle classification |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Dual Stream | Supported |
| Video Bitrate | 32 Kbps – 4 Mbps |
| Total Bandwidth | 96 Mbps |
| Remote Connections | Up to 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet |
| Storage Interface | 1 SATA (Up to 6TB HDD) |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | ≤7 W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Working Humidity | 10% – 90% |
| Dimensions (W × D × H) | 285 × 210 × 48 mm |
| Weight | ≤1.8 kg (without HDD) |
| Weight | 0.850 kg |
|---|---|
| color | Blue, Golden, Gray, Green |
