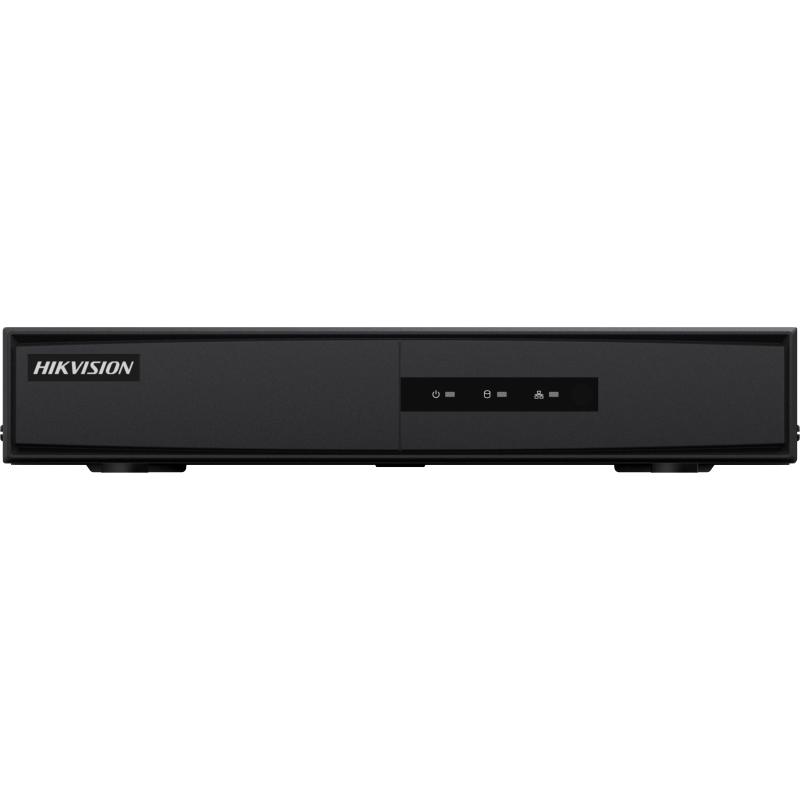

8-Channel Mini 1U Network Video Recorder (NVR)
-
Supports H.265+/H.265/H.264+/H.264 video compression formats
-
Handles 60 Mbps incoming and 60 Mbps outgoing bandwidth
-
Supports up to 8 network camera inputs (up to 6 MP resolution)
-
4-channel 1080p decoding capability for smooth playback
-
Simultaneous HDMI and VGA output for flexible display options
-
1 SATA interface supporting up to 6TB storage per disk
-
Efficient operation with ≤10 W power consumption
-
Compact and lightweight design suitable for small-scale installations
-
CE-certified, compliant with EN50130-4 and EN61000 series
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
The 8-Channel Mini 1U NVR is a reliable and compact network video recorder designed for small to medium-scale surveillance systems. Featuring advanced video compression formats such as H.265+ and H.264+, it optimizes storage while maintaining high-quality video playback. The device supports up to 8 network camera inputs with resolutions up to 6 MP, and delivers 4-channel 1080p decoding capability, ensuring smooth and clear monitoring.
Its simultaneous HDMI and VGA outputs allow versatile display setups. Equipped with a SATA interface supporting storage up to 6TB per disk, it provides ample recording capacity. With a low power consumption of ≤10 W, this NVR is energy-efficient and reliable. Compact, lightweight, and CE-certified, it is ideal for professional home, office, or retail security applications requiring robust network surveillance.
| Category | Specification |
|---|---|
| Video and Audio | |
| IP Video Input | 8 channels |
| Max. Resolution | Up to 6 MP |
| Incoming Bandwidth | 60 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 4 channels |
| Decoding Capability | 4-ch@1080p (30 fps), 2-ch@4 MP (30 fps), 1-ch@6 MP (30 fps) |
| Stream Type | Video, Video & Audio |
| Network | |
| Remote Connection | 16 connections |
| Supported Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Network Interface | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA Interface | 1 SATA interface |
| Storage Capacity | Up to 6 TB per disk |
| Alarm In/Out | Not available |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 10 W |
| Working Temperature | -10°C to +55°C (+14°F to +131°F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″) |
| Weight | ≤ 1 kg (2.2 lb) |
| Certification | CE: EN50130-4, EN61000-3-2, EN61000-3-3 |
| Weight | 0.300 kg |
|---|---|
| color | Black, Blue, Orange |
