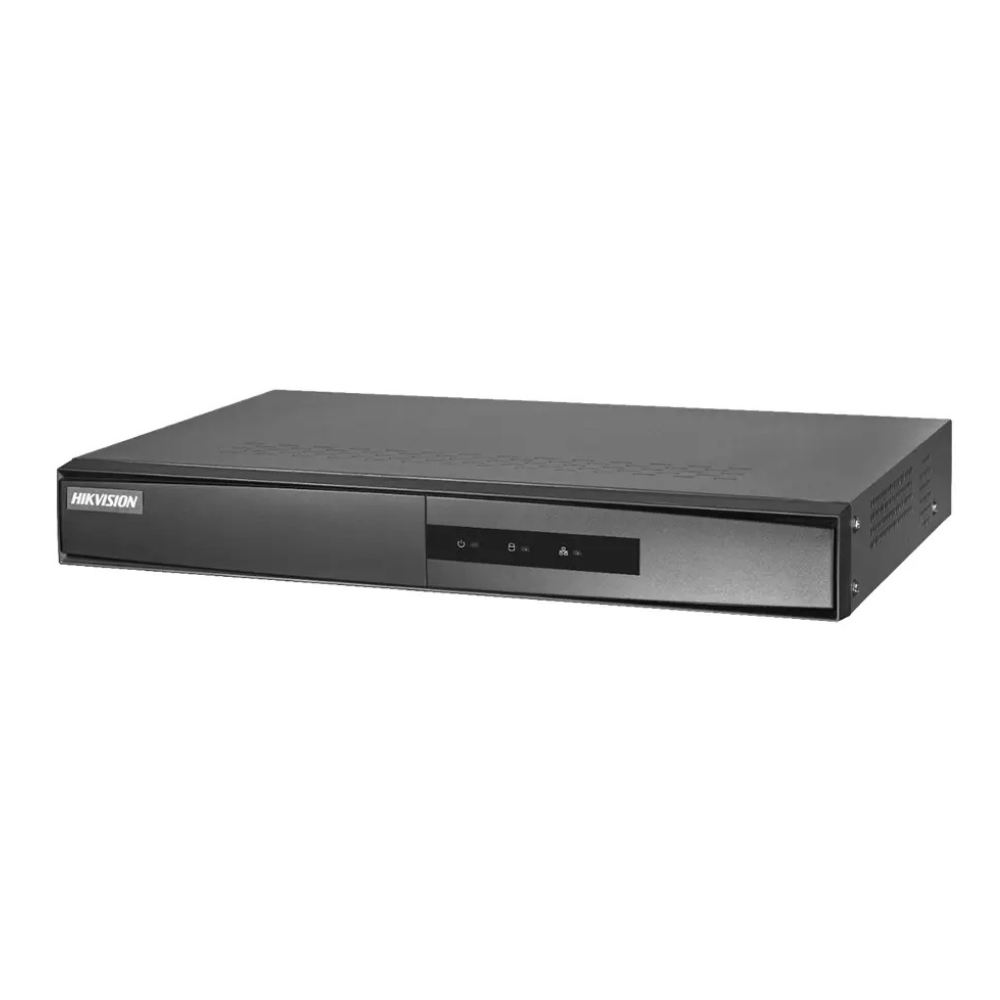

16-Channel Mini 1U Network Video Recorder (NVR)
-
Supports H.265+/H.265/H.264+/H.264 video compression
-
Handles 160 Mbps incoming and 80 Mbps outgoing bandwidth
-
Supports up to 16 network camera inputs
-
16-channel 1080p decoding capability for high-quality playback
-
Simultaneous HDMI and VGA output for flexible display options
-
1 SATA interface supporting up to 6TB storage per disk
-
Compact 1U chassis, lightweight at 1.29 kg
-
Efficient operation with ≤10 W power consumption
-
CE- and FCC-certified for quality and safety compliance
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
The 16-Channel Mini 1U NVR is a high-performance network video recorder designed for small to medium-sized surveillance installations. It supports multiple advanced video compression formats including H.265+ and H.264+, ensuring efficient storage usage while maintaining excellent video quality. The device can handle up to 16 network camera inputs and provides 16-channel 1080p decoding, delivering clear and smooth monitoring for all connected cameras. Equipped with simultaneous HDMI and VGA outputs, the NVR allows versatile display setups.
Its SATA interface supports storage up to 6TB per disk, providing sufficient recording capacity for extended surveillance periods. The unit features a compact 1U form factor and is lightweight, making it easy to install in rack-mounted setups. With low power consumption of ≤10 W and compliance with CE and FCC standards, this NVR is reliable, energy-efficient, and suitable for professional security applications.
| Category | Specification |
|---|---|
| Subseries | Value 7 Series NVR |
| Available Models | DS-7116NI-Q1/M |
| Chassis | 1U |
| HDD Interface | 1 SATA |
| IP Channel Number | 16-ch |
| Decoding Capability | 16-ch@1080p |
| Video and Audio | |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video Output Mode | HDMI/VGA simultaneous output |
| Network | |
| Remote Connection | 16 connections |
| Network Interface | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Storage | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB per disk |
| RAID | No |
| General | |
| Power Consumption | ≤ 10 W |
| Dimensions (W × D × H) | 265 × 225 × 48 mm |
| Weight | 1.29 kg |
| Certification | FCC: Part 15 Subpart B, ANSI C63.4-2014; CE: EN50130-4, EN 61000-3-2, EN 61000-3-3 |
| Weight | 0.300 kg |
|---|---|
| color | Black, Blue, Orange |
