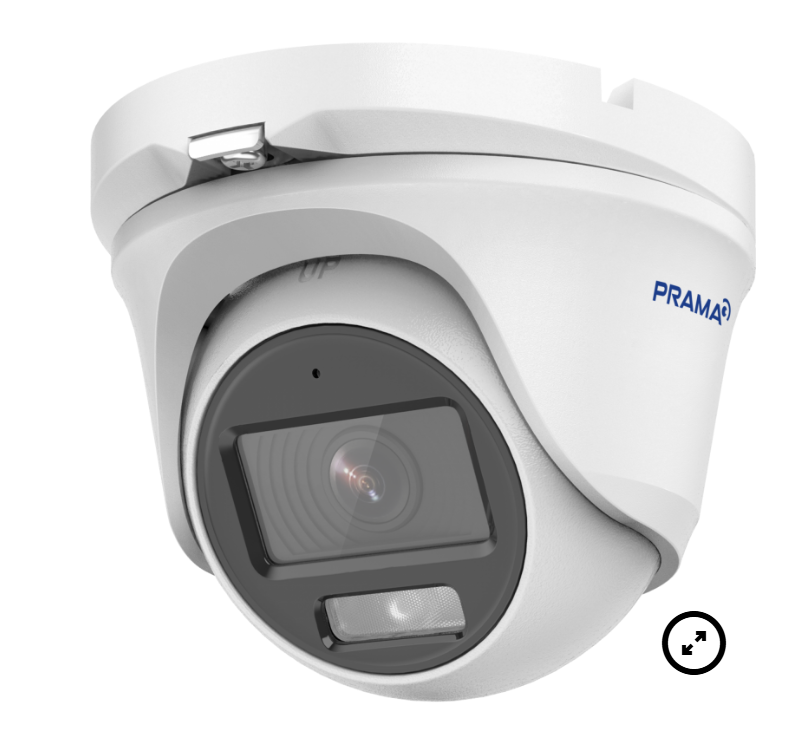

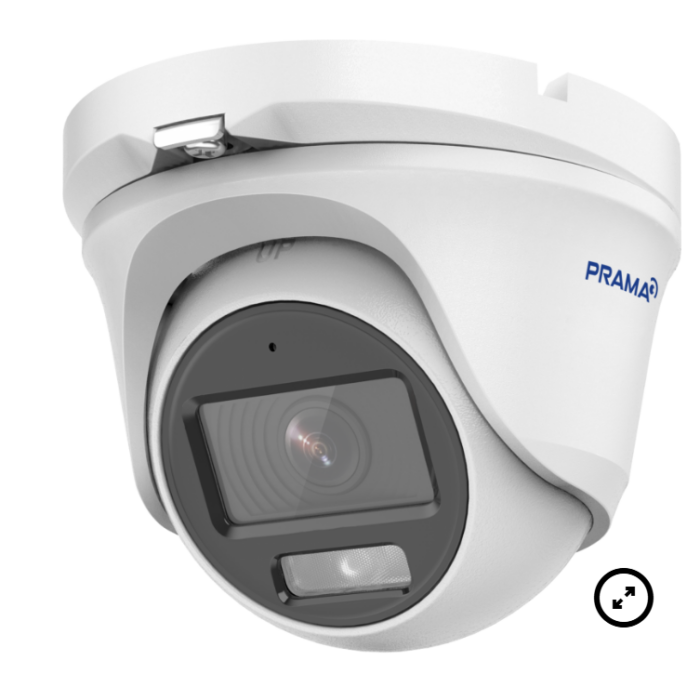

PRAMA PT-HTD70F0E-LMFS 2MP Ranginview Audio Fixed Turret Camera
-
High-quality 2MP resolution (1920 × 1080) for clear and detailed images
-
Available in 2.8mm and 3.6mm fixed focal lenses
-
Up to 30m IR and 20m white light distance for bright night imaging
-
Smart Dual-Light technology for enhanced low-light performance
-
Built-in microphone with high-quality audio via coaxial cable
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
Durable metal body with IP66-rated water and dust resistance
-
Wide dynamic range (DWDR) and multiple image enhancement options
-
Supports flexible installation with full 360° pan and rotation
-
Operates in extreme temperatures (-40°C to 60°C)
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
The PRAMA PT-HTD70F0E-LMFS 2MP Ranginview Audio Fixed Turret Camera is designed to deliver superior surveillance performance with full HD 1080p resolution. Equipped with Smart Dual-Light technology, it ensures bright and colorful imaging even at night, with up to 30 meters of infrared and 20 meters of white light illumination. The built-in microphone provides high-quality audio over coaxial cable, enhancing security monitoring. With its IP66-rated metal housing, this camera offers exceptional durability and reliability in various environments. Supporting four switchable signals (TVI/AHD/CVI/CVBS) and flexible mounting options, the PT-HTD70F0E-LMFS ensures seamless integration with modern surveillance systems while delivering crystal-clear visuals and robust audio clarity.
Technical Specifications
| Category | Details |
|---|---|
| Model | PT-HTD70F0E-LMFS |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s |
| Day & Night Mode | ICR (Auto/Color/BW) |
| Signal System | PAL/NTSC |
| Lens Type | Fixed focal lens |
| Focal Length Options | 2.8mm / 3.6mm |
| Field of View (2.8mm) | H: 100°, V: 55°, D: 116° |
| Field of View (3.6mm) | H: 80°, V: 43°, D: 95° |
| Lens Mount | M12 |
| Supplement Light Type | White Light, IR |
| IR Range | Up to 30 m |
| White Light Range | Up to 20 m |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | 1080P @25/30fps (TVI/AHD/CVI), PAL/NTSC (CVBS) |
| Wide Dynamic Range | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| White Balance | Auto/Manual |
| AGC (Auto Gain Control) | Yes |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Built-in Microphone | Yes |
| Material | Metal |
| Dimensions | Ø82.65 mm × 69.16 mm |
| Weight | Approx. 253 g |
| Operating Conditions | -40°C to 60°C, ≤90% RH (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 3.2 W |
| Protection Level | IP66 (Water and Dust Resistant) |
| Available Models | PT-HTD70F0E-LMFS (2.8mm), PT-HTD70F0E-LMFS (3.6mm) |
| Weight | 0.300 kg |
|---|---|
| color | Black, Blue, Orange |
