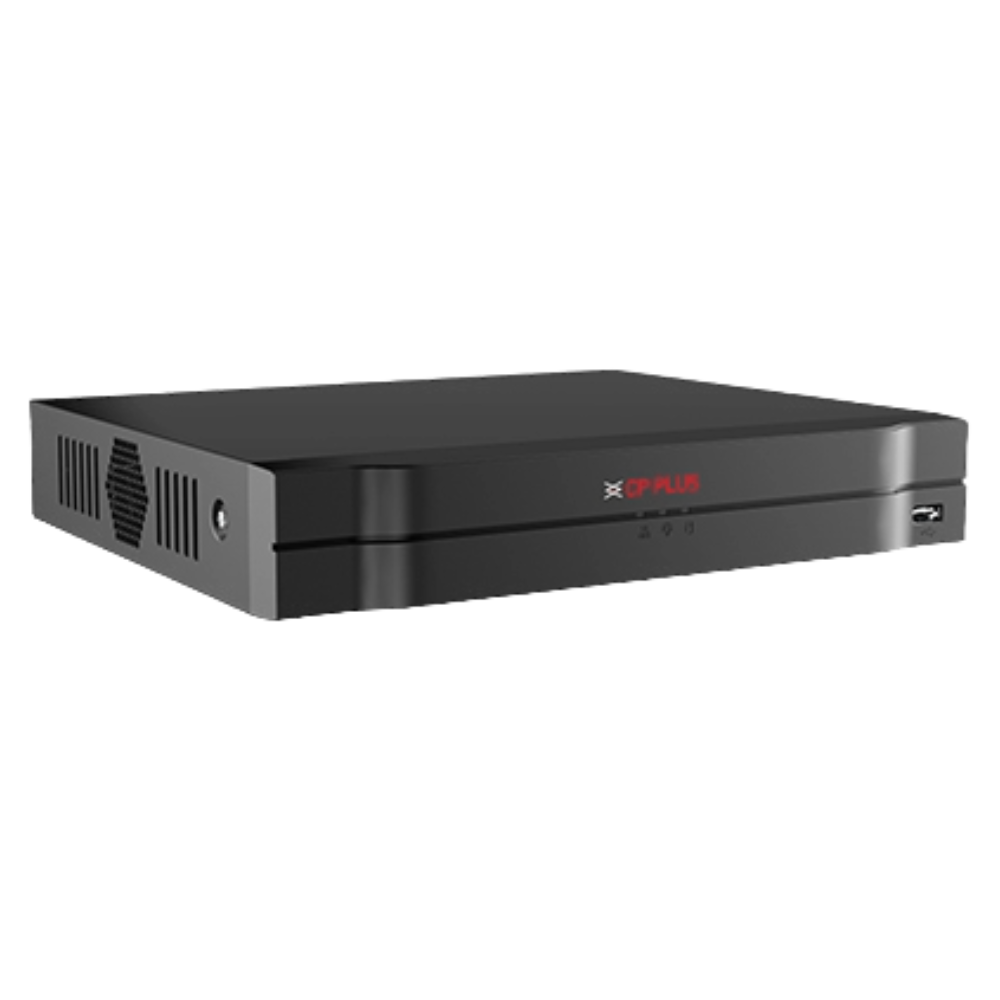

CP PLUS 16-Channel 1080N Digital Video Recorder with AI Instastream
-
16-Channel 1080N Digital Video Recorder
-
Auto-adaptive support for HDCVI / AHD / TVI / CVBS / IP cameras
-
Supports up to 18 IP cameras, each up to 6MP
-
64 Mbps incoming, recording & outgoing bandwidth
-
AI Instastream & H.265 dual-stream video compression
-
SMD Plus with Human & Vehicle classification (up to 8 channels)
-
Supports 1 SATA HDD up to 16TB
-
HDMI & VGA simultaneous video output
-
Remote monitoring via iCMOB & gCMOB mobile apps
-
CMS software supported: KVMS Pro Lite
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
About this item
The CP PLUS CP-UVR-1601E1-IC2 16-Channel Digital Video Recorder is a high-performance surveillance solution designed for large homes, offices, retail chains, warehouses, and commercial premises. Built with an industrial-grade processor and an Embedded Linux OS, this DVR ensures stable, long-term operation with enhanced security performance.
With support for multiple analog and IP camera formats, the recorder allows seamless system expansion up to 18 IP channels. The advanced AI Instastream encoding optimizes storage usage and network bandwidth while delivering high-quality video. Equipped with SMD Plus technology, the DVR intelligently filters motion alerts by detecting humans and vehicles, reducing false alarms caused by environmental changes. Featuring HDMI/VGA outputs, remote mobile access, high storage capacity, and robust networking, this DVR is ideal for demanding, multi-camera security installations.
| Category | Details |
|---|---|
| Brand | CP PLUS |
| Model Number | CP-UVR-1601E1-IC2 |
| Recorder Type | 16-Channel Digital Video Recorder |
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Video Input | 16-Channel BNC |
| Camera Signal Support | HDCVI / AHD / TVI / CVBS / IP |
| IP Camera Input | Up to 18 Channels (2 IP default + 16 converted) |
| Max IP Resolution | Up to 6MP |
| Bandwidth | 64 Mbps (Incoming / Recording / Outgoing) |
| AI Technology | AI Instastream |
| SMD Plus | Up to 8 Channels |
| AI Function Note | SMD disabled when IP channels exceed existing channels |
| Encode Strategy | AI Instastream / Instastream |
| Video Compression | H.265+ / H.264+ / H.264 |
| Recording Resolution | 1080N / 720P / 960H / D1 / CIF |
| Main Stream Encoding | Ch1: 1080N/720P @ 1–25/30fps; Others: 1–15fps |
| Sub Stream Encoding | CIF @ 1–7fps |
| Video Output | 1 × HDMI, 1 × VGA |
| Output Resolution | 1920×1080, 1280×1024, 1280×720 |
| Display Split | 1 / 4 / 8 / 9 / 16 |
| Bit Rate | 32 kbps – 6144 kbps |
| Audio Input | 1 × RCA, 16-Ch BNC (Coaxial Audio) |
| Audio Output | Shared with Channel 1 |
| Audio Compression | G.711A / G.711U / PCM |
| Audio Sample Rate | 8KHz, 16-bit per channel |
| SMD Alarm | Motion detection, Video loss, Tampering |
| Playback Channels | 1 / 4 / 9 |
| Playback Modes | Instant, General, Event, Tag |
| Backup Mode | USB Device / Network |
| Hard Disk Support | 1 × SATA, up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Ethernet Port | 1 × RJ-45 (10/100/1000 Mbps) |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P, ONVIF 21.06 |
| Mobile App | iCMOB, gCMOB |
| CMS Software | KVMS Pro Lite |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | < 10W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0% – 90% RH |
| Dimensions (W × D × H) | 260 × 231.4 × 47.6 mm |
| Weight | 1.42 kg (Without HDD) |
| Ideal Use | Commercial, Warehouse, Office, Retail, Large Surveillance Systems |
| Weight | 0.100 kg |
|---|---|
| color | Blue, Golden, Red |
| internal-storage | 16GB, 32GB |
